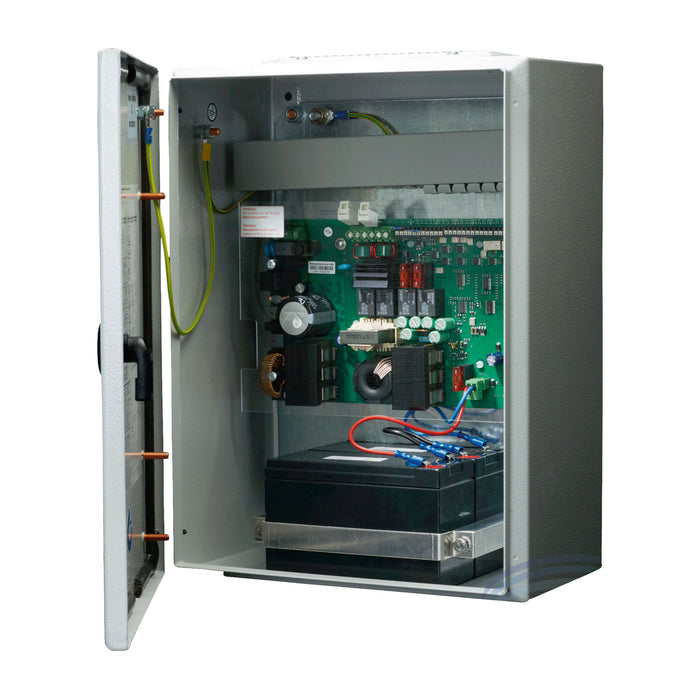

Kingspan STG RWA compact central unit 8 A/M or W.

24 V DC smoke extraction system for electric smoke extraction
and daily ventilation.

• 8A current output
• including the “daily ventilation” function
• one RWA group (RG) and two ventilation groups (LG)
• two motor circuits
• Power supply 24 V, emergency batteries and charging unit, parallel operation, 72 hours.
Maintains functionality in the event of a power failure
• Line monitoring of the detector circuits (automatic detectors and RWA control points)
and the connected drives
• adjustable special functions
• PC service port interface for expanded configuration options
• Built-in maintenance timer
• lockable door
• in a surface-mounted housing, with optional flush-mounted metal frame
• TÜV type tested

Connection options
24 V DC drives with their own load or limit switch, can be freely divided into two motor circuits
10 RWA control points RBH/3A...
10 automatic detectors in 2-wire technology
10 external ventilation buttons (with/without open display) per ventilation group
a wind/rain detector (WRM/2 24V) or 1 rain detector (RM/2 24V)
Potential-free forwarding of RWA, faults and wind/rain reports

via a potential-free changeover contact, max. 60 V / 0.5 A
