Detectomat adapter CON-X for detect 3004plus

Detectomat adapter CON-X for detect 3004plus

by Detectomat
€0
€644,00 - €644,00
€644,00
€644,00 - €644,00
€644,00

Produktübersicht

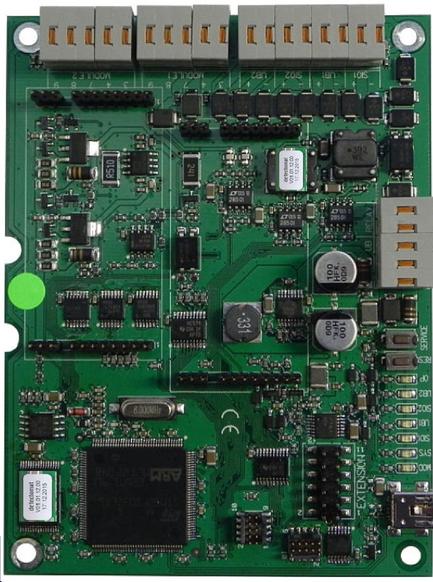

Adapter for CON-X

  • For the BMZ detect 3004plus
  • Serial interface to BMZ RS232 included in delivery
  • With ADP-FBF for parallel-serial conversion of a conventional FBF interface
  • Provision of the redundant connection for the FAT4000 according to DIN EN 54-2 and DIN 14662
  • Monitoring of transmission paths according to EN 54-13, type 1
  • Up to 16 redundant FAT/ZPA in one loop
  • Up to 31 "slave" FAT/ZPA on one FAT4000 (stub)
  • USB interface for commissioning the entire system, troubleshooting and maintenance
  • Additional serial interface for expansions (e.g. ESPA)
  • 7 diagnostic LEDs for quick status analysis
  • The adapter is intended to be mounted on a top-hat rail, optionally in the housing
  • Adapter module for integrating another BMA into an existing redundant System4000 bus
  • Prog4000 programming tool included in delivery
Supply voltage 10 to 30V DC
Quiescent current approx. 40 mA / 30 mA
Ambient temperature -5°C to +50°C
operating temperatur -20°C to +60°C
Storage temperature -20°C to +60°C
humidity <96% non-condensing
Dimensions (H x W x D) 115x90x40mm
VdS recognition G213058
