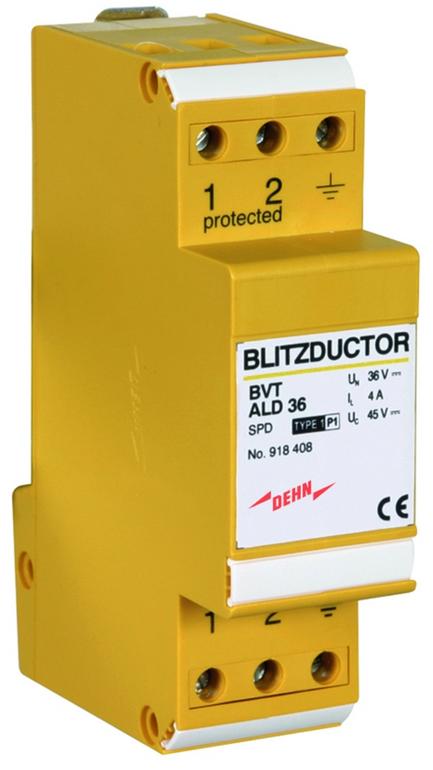

Space-saving combination arrester module to protect 4 individual wires of symmetrical interfaces against overvoltages. Suitable for use as a protection module for all incoming and outgoing signal lines of the detect 3000 system

  • Integrated monitoring of the arrester module for thermal and electrical overload conditions - LifeCheck
  • Optimal protection effect for 4 individual wires of symmetrical interfaces with input diode circuitry, current loops (TTY) and optocoupler inputs
  • Type 1 P1 arrester can be used according to the lightning protection zone concept at interfaces 0A-2 and higher
  • Mounting and grounding via base part BXT BAS
  • Connection via screw terminals up to 4mm² cable cross section on the base part
Supply voltage 24V
Ambient temperature -40°C to +80°C
Protection class IP20
Dimensions (H x W x D) 45mm x 12mm x 51mm
Weight 27g
material Polyamide PA 6.6
Color yellow
Norms IEC 61643-21, UL 497B
VdS recognition G608001
System approval S210001
further approvals CSA, UL
Remarks Accessory base part: BXT BAS item no. 32495
