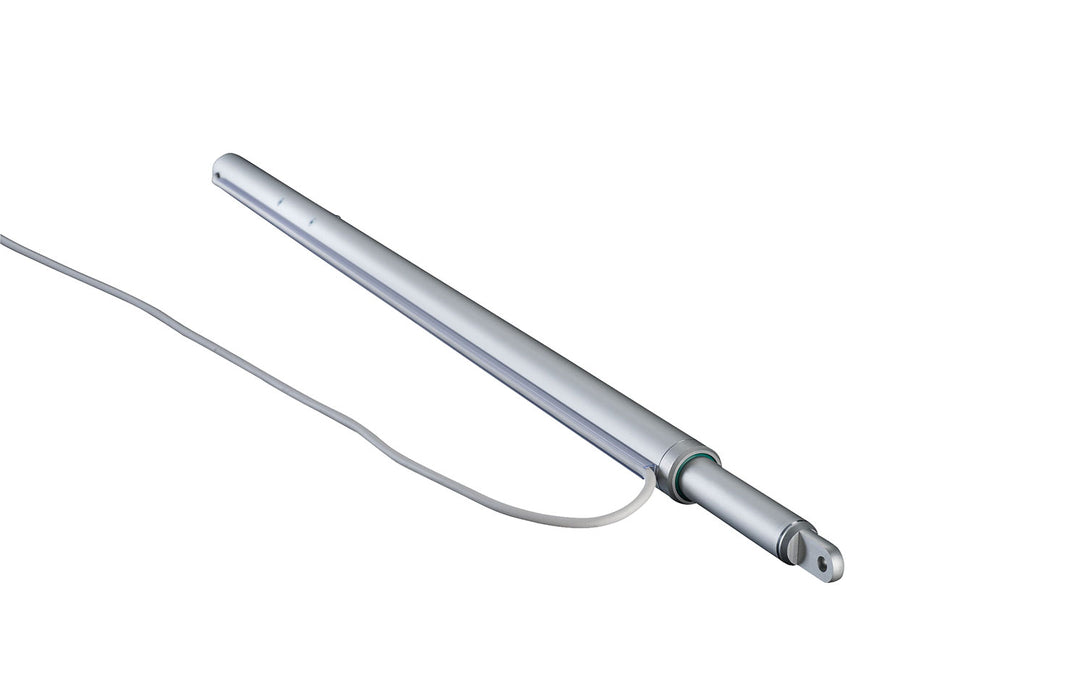

Kingspan STG linear drive M9/300-650N/LA/EV1/RWA

Kingspan STG linear drive M9/300-650N/LA/EV1/RWA

by STG Beikirch
€530,15 - €530,15
€530,15
€530,15 - €530,15
€530,15

Produktübersicht

For opening and closing window sashes, roof windows and skylights for smoke extraction and ventilation.

Advantages/features:

  • Different pressure forces available ( 650 N , 1000 N and 1500 N)
  • Features Integrated, electronic load switching
  • Synchronous operation with several drives possible via external synchronous modules
  • Dust-tight and splash-proof (protection class IP 54)
  • Corrosion-free thanks to the casing and thrust tube made of aluminum alloy

Material:

  • Housing: aluminum
  • End caps: aluminum
  • Color: EV1/silver, anodized or in RAL colors on request

Technical data:

Rated voltage: 24 V DC (-15% /+25%)
Permissible ripple of rated voltage: 2 Vpp
Rated current: 1A
Shutdown: internal
Protection class III
Stroke length: 300 , 500, 750 and 1000 mm
Compressive force: max. 650 N
Tensile force: max. 650 N
Locking force: 2000 N
Running speed: approx. 6.7 mm/s
Duty cycle: ED 30 (10 min)
Lifespan: > 10,000 cycles
Dimensions: (stroke + approx. 260 mm) x Ø 36 mm
Connection cable: 2 x 0.75 mm²
Ambient temperature: -5°C to +75°C
Protection class: IP 54

Technical changes reserved; Illustrations are non-binding.
