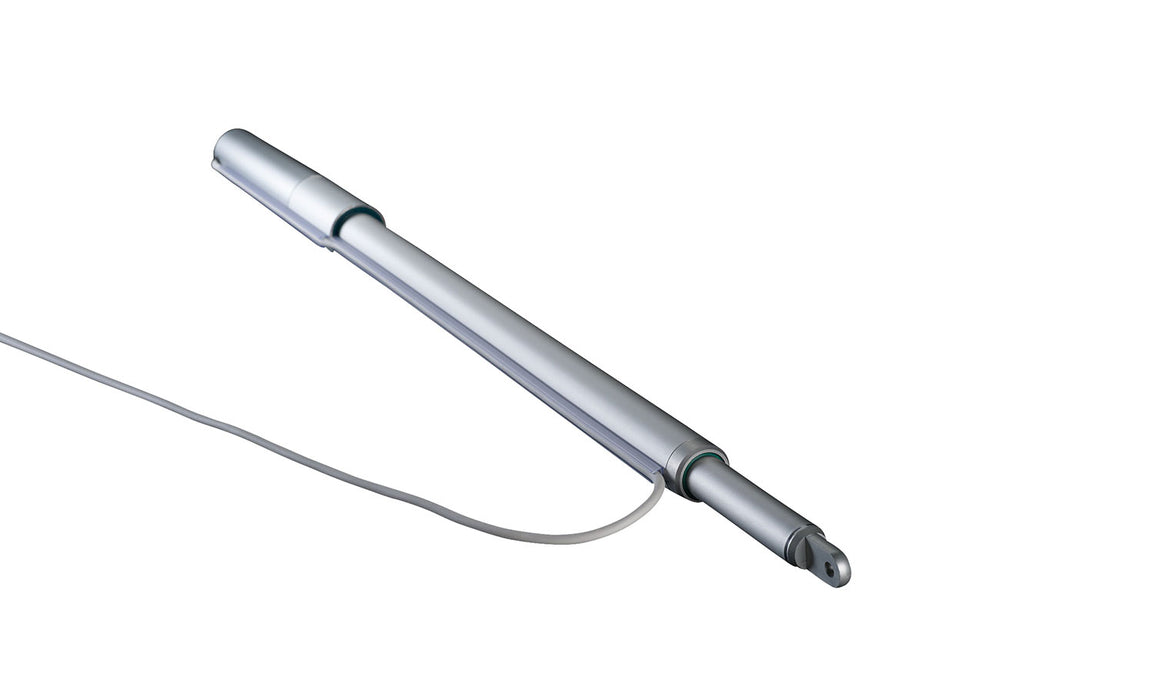

Kingspan STG linear drive M1/750-1500N/LA/EV1/RWA

Produktübersicht

For opening and closing heavy window sashes, roof windows and skylights for smoke extraction and ventilation.

Advantages/features:

• Different pressure forces available (1000 N, 1500 N and 2000 N)
• Features Integrated, electronic load switching
• Synchronous operation with several drives possible via external synchronous modules
• Dust-tight and splash-proof (protection class IP 54)
• Corrosion-free thanks to the casing and thrust tube made of aluminum alloy

Material:

• Housing: aluminum
• End caps: aluminum
• Color: EV1/silver, anodized or in RAL colors on request

Technical data:

Rated voltage: 24 V DC (-20% /+50%)
Permissible ripple of rated voltage: 2 Vpp
Rated current: 2.5A
Shutdown: internal
Protection class III
Stroke length: 300, 500, 750 and 1000mm
Compressive force: max. 1500 N
Tensile force: max. 1500 N
Locking force: 2000 N
Running speed: approx. 11.6 mm/s
Duty cycle: ED 30 (10 min)
Lifespan: > 10,000 cycles
Dimensions: (stroke + approx. 410 mm) x Ø 50 mm
Connection cable: 2 x 1.5 mm²
Ambient temperature: -5°C to +75°C
Protection class: IP 54

Technical changes reserved; Illustrations are non-binding.
