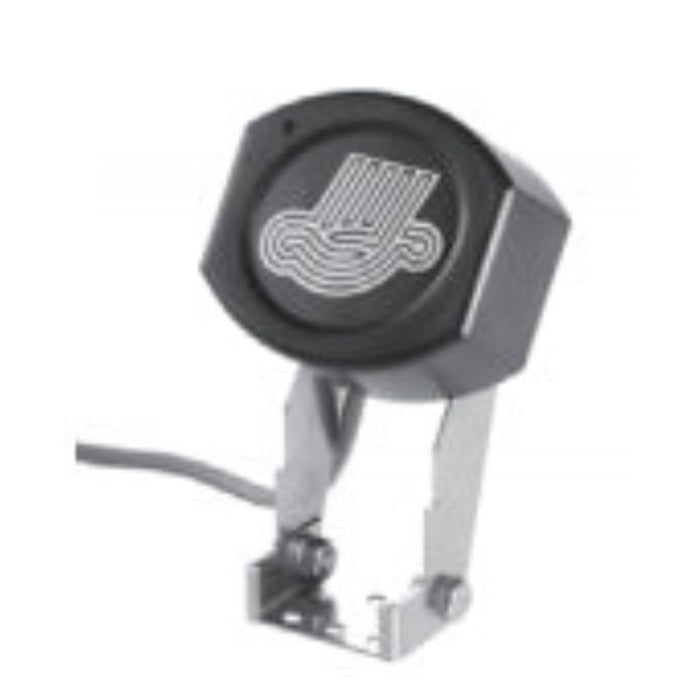

Aumüller accessories RWA - central rain compact sensor 230V/50Hz type III

Produktübersicht

Application: Rain sensor based on the conductance measurement principle with heated sensor surface and integrated evaluation electronics
with potential-free contact for signal transmission.

TECHNICAL DATA (rated values)
Operating voltage: 230 V AC (50 Hz)
Power consumption: <1.5 VA
Measuring principle: conductance measurement
Display: Output active
Output: 1x Um, 5 A / max. 230 AC
Protection class: IP65
Housing: AP, black ABS with stainless steel console
Dimensions: 100 x 85 x 172mm
Connection cable: Halogen-free, approx. 4 m

Feature/equipment
Single device for feeding in from the power grid
