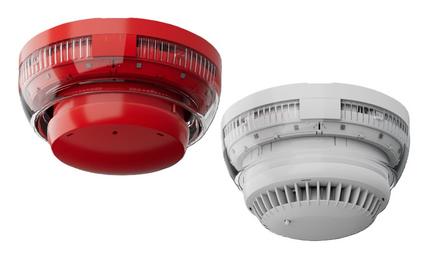

Produktübersicht
- Up to 126 multi-tone sirens with maximum volume with a 3,000 meter loop length
- 100% uninterrupted loop alerting (zero seconds as per MLAR requirement)
- Cost savings, the integrated battery enables decentralized energy management, meaning no additional fire protection housing is required for the BMZ
- Full integration into the Loop3000 topology (with DC3500 from V3.4)
- Individual configuration via DPT (41 tones including DIN tone, 4 different alarm scenarios, 4 volume levels)
- Optimized, homogeneous radiation characteristics
- Integrated automatic reset function for the “external signal generator on/off” signal from the fire alarm control panel
- Monitoring the operating status via the Loop3000
- Optional automatic or manual addressing.
- Integrated bidirectional isolator according to EN 54-17
- Easy to assemble, the flat base plate allows for quick pre-installation and loop connection
- Suitable for wall and ceiling mounting (cover cap available as an accessory)
- Integrated base for automatic detectors of the Loop3000 series (for ceiling mounting)
- Long-term investment security through physical separation of signaling and fire detection. If the detector needs to be replaced, for example due to contamination, the siren can continue to be used.
- Service-friendly thanks to integrated battery monitoring and runtime forecast via DPT
- Aesthetic, robust housing according to IP 4
- Accessories: Cover cap for combination signal generator PL 3300w CONUS S with cable, white (packaging unit 10 pieces). To be used when used without a smoke detector in the PL 3300w CONUS S, item no. 33691 Accessories: Mounting base for PL 3300w CONUS S, white, item no. 33693 Accessories: Lithium battery pack PL 3300w CONUS S (PU 5 pcs.), item no. 33898
Technical data:
Supply voltage |
15 V to 32 V (abs. max. 34V) |
Quiescent current |
< 400 µA |
Alarm current |
Powered by battery |
operating temperatur |
-10°C to + 55°C |
Storage temperature |
-20°C to + 65°C |
humidity |
max. 93% (non-cond.) |
Protection class |
IP41 |
Dimensions (H x W x D) |
76mm x 145mm x 145mm |
Weight |
345g |
material |
SECTION |
Norms |
54-3 |
VdS recognition |
requested |
System approval |
planned |
CE CPD number |
1438-CPR-0637 |
Battery life |
8 years |
volume |
98 dB @ 1m, DIN 33404, Part 3 |
tones |
41 |
